Board Size: 4-1/4" L x 2-7/8"
Wizard Board is pre-assembled and tested.
Controller has 7-bit Resolution.

Wizard - 1 Board Document

Application Note

Product Video

The Wizard - 1 Board is a small 9 Volt dc powered interface board that will record and playback up to 5 minutes of servo motion for 4 standard 5 Vdc hobby R/C type servos and control 4 digital switched ON and OFF outputs at +4.5 Vdc (100 mA) per channel.

The Wizard - 1 board incorporates many features such as looping playback servo motion with variable delay between loops. An auto start-up on power option and on board connector for remote activation switching such as a PIR sensor, contact switch or mat pressure pad to initiate playback.

Recording sessions are built up on a channel by channel process - no complex programming is required. During recording, all previously recorded channels are re-played to aid synchronization the current channel being programmed. Programming is easily done, with a set of push button keys and control potentiometer built onto the board.
No host computer or other programming device is needed to operate the board, Board has 7-bit Resolution.
Programmable Recording time - 5 Minutes

Power supply, Servos, not included.
( 9 Volt dc @ 2 Amp power supply needed )

Click on image for a larger view







Board Size: 6-5/8" L x 4-1/2" W
Wizard - 2 Board is pre-assembled and tested.
Controller has 7-bit Resolution.

Wizard-2 Manual

Wizard-2 Board Document

Wizard-2 Board Applications -1

Wizard-2 to Multiple Boards
Wizard-2 to MP3 Playback Board


Note:
Regulated 9 Vdc @ 2 Amp and
Regulated 5 Vdc @ 2 Amp
power supplies recommended



Product Video

The Wizard - 2 Board will record / playback up to 5 minutes of action for up to 4 -R/C type servos and 4 - digital outputs or can be selected to operate 8 digital outputs with on board relays or direct digital signal output connection pads each with 5 minutes also per channel of recording time. The board also incorporates features such as looping playback action with variable delay between start-up on power up and sensor input. A terminal connection block for remote switch, pressure pad or synch signal from other device to initiate playback sequences is built on board also.

Recording sessions are built up on a track-by-track basis - no programming is required. During recording, all previously recorded tracks are re-played to aid synchronization.

FEATURES:

- 4 Servo output channels, each capable of recording and playback of up to 5 minutes of action.
- 8 Digital channels - 0/4V dc at 100 mA outputs each capable of recording and playback of up to 20 minutes of action
- 8 on board Relays ( 2 Amp @ 30 Vdc)
- Relay wire terminal connection blocks.
- 8 direct digital control signals with connection pads.
- Potentiometer to adjust the servo positions during recording or to determine the time delay between play loops during automatic loop play - adjustable between 0 and 65 seconds.
- NEXT, PLAY and RECORD buttons.
- Record enable / disable jumper
- AUTO-PLAY and LOOP-PLAY switches
- Status LED's , Board has 7-bit Resolution.
- Many more unique features.
- Programmable Recording time - 5 Minutes

Note: An on-board jumper allows the board to be configured for 8 -Digital outputs or a combination of 4 -Servo and 4 -Digital outputs.

Unit comes with user manual and assembled board.
( Servos and 9Vdc, 5Vdc, power supplies not included )

Board Size: 6-5/8" L x 4-1/2" W
Wizard - 3 Board is pre-assembled and tested.

Wizard-3 Manual

Wiz-3 Board Application

Note:
Regulated 9 Vdc @ 2 Amp and
Regulated 6 Vdc @ 2 Amp
power supplies recommended

Example Setup
Wizard-3 Manual / Overview

The Wizard 3 board will record and playback up to 4 separate tracks for up to 8 R/C type servos channels and 8 digital channels. The maximum recording time per track is 3 minutes for multiple track operation or 6 minutes for single track operation. The card incorporates features such as looping action with variable delay between loops, auto start-up on power up, a connection interface for a PIR, remote switch or pressure pad to initiate playback and the ability to daisy-chain several
cards together. The card may be connected to the optional Sound Board Pro to provide audio accompaniment to the tracks.

Recording tracks are built up in real time on a channel-by-channel basis no programming is required.

During recording all previously recorded channels are re-played to aid synchronization.

NOTE: Controller requires 2 Power Supplies(1-9VDC and 1-5 or 6VDC)
NOTE: Sound Board Pro required if sound option is used.

( 9 Vdc @ 2 Amp and 5-6 Vdc @ 2 Amp power supplies recommended )

Regulated Power Supplies ( 5-6 and 9 VDC ) and Servos, not included.

The Wizard- 4 Controller Board or Programmable
4 - Channel Relay module will record and playback up to 25 minutes of controlled ON and OFF action for1 - 4 Outputs Relays.

The board incorporates such features as looping playback, variable delay between programmed routines, auto loop, auto start-up on power up, a connection terminal for remote switch activation by manual switch, PIR sensor, pressure pad, etc, to activate playback.

Recording sessions are built up on a channel-by-channel basis - no complex programming needed, or connection to a host computer to program routines. Board has many other features including on-board programing and function selection switches, Sync output, EEPROM protection, direct digital output pins, optional user selected jumper relay activation or power down setting.
The relay contacts are rated at 30 Volt DC @ 2 Amps.
Quick wire terminal blocks are built on-board for each relay, with a common connector jumper option.
Programmable Recording time - 25 Minutes
Programming is stored in EEPROM
Board has 7-bit Resolution.
Board is powered by a 9 Volt regulated power supply connected to the on-board 2.1mm socket.

Supplied built and tested.
( Regulated 9 Volts dc power supply not included )

Super Animatronic Board

2- servos, 2- Relays, Digital Out, Sound Chip and Sound to Motion,
all on one controller board.


Enhanced Sound now with
4 minute sound chip on board

Board Size: 6"L x 4"W x 1"H

Controller has 7-bit Resolution.
Wizard - 5 Board is pre-assembled and tested.

Recommended 9 Vdc @ 2 Amp power supply

Wizard-5 Manual

Wizard - 5 Board Overview

Wizard - 5 Board Applications

Product Video

The Wizard - 5 Board will record and playback up to 5 minutes of action for up to 2 servos and 2 digital outputs (on-board relays). It also incorporates a 4-minute audio recording and playback sound chip with the ability to control one servo channel either from recorded moves or from an audio signal, direct or from on-board sound chip.
The card includes features such as looping action with variable delay between loops, auto start-up on power up and a connection interface for a PIR, remote switch or pressure pad to initiate playback.
Recording sessions are built up on a track-by-track basis- no complex programming is required and no computer is needed. During recording, all previously recorded tracks are re-played to aid synchronization.

Wizard - 5 Board Features
2- Digital channels- either 0/4V @ 10mA outputs or relay rated 30V @ 2A .
2- Servo channels ­ one channel may be automatically controlled from an audio signal either from the line input or from the on-board sound chip.
4 minute, high quality sound chip- digital recording selected from either from the line input (ie from a sound card and wav files) or from microphone input.
Potentiometer to adjust the servo position and the time delay between loops in loop-play.
Digital ON-OFF, NEXT, PLAY and RECORD buttons.
Record enable/disable jumper, EEprom protect jumper.
AUTO-PLAY and LOOP-PLAY switches.
Sync output for multi-board operation.
Programmable Recording time - 5 Minutes
Remote start option- for switches, sensors / PIRs, etc.
Maximum and minimum set points to the audio servo channel, and many more features.

Power supply, Servos, not included.
( 9 Volt dc @ 2 Amp power supply needed )

Board Size: 4" L x 3" W x 1/2"H
Mechanical relay rated 30V @ 2Amps

Controller requires 9 Vdc power.
Board is pre-assembled and tested.

Controller Instructions

The Wizard 9 board will record and playback up to 25 minutes of action for up to 2 digital / relay outputs. The board also incorporates features such as looping action with variable delay between loops, auto start-up on power up and a connection interface for a PIR, remote switch or pressure pad to initiate playback.

Specifications:

2 Digital channels- either 0/5V @ 100mA outputs or mechanical relay rated 30V @ 2Amps to wire terminal blocks,.
On board Potentiometer to determine the time delay between play loops during automatic loop play- adjustable between 0 and 65 seconds.
Digital 1, Digital 2 on-off, NEXT, PLAY and RECORD buttons.
Record enable/disable jumper protection.
Programmable Relay Recording time - 25 Minutes
AUTO-PLAY and LOOP-PLAY switches
Sync output for multi board operation
REMote start option- for interfacing to pressure pads / PIRs switches, relays, manual start buttons, etc.
REM polarity select jumper- start on either +5v or 0V condition.
Board operates from 9 Vdc power supply
( 9 Vdc Power Supply, not included.)

This unique board makes connecting a DC motor setup easy and quick.
Simply connect two remote relay outputs to the motor logic board inputs, power to the board, and a dc motor and you have a full functional CW / CCW operating motor board with limit position switch inputs, emergency stop switch protection

Board has connection for limit switches, emergency stop switch, remote relays.
On board LED's indicated motor direction, and power status
Quick power jack connector for motor power hook-up
Terminal blocks for wire from remote relays, motor connection
Connect this board to a Wizard - 9 controller and you get a programmable
motor controller with CW/ CCW motor control.

( Power supply, motor, and switches not included )

Ultimate Animatronic Board

6- Servos, 2- Relays, 4- minute Digital Out,
Sound Chip and Sound to Motion
(AutoTalk) control, all on one single controller board.

Click on image for larger view


Board Size:
7-3/8" L x 4-1/8" W x 1/2" H
Board is pre-assembled and tested.
Controller has 7-bit Resolution.

Wizard-11 Manual

NOTE:
The Wizard -11 requires
duo power supplies

9 VDC @ 1.0 Amp power supply .....
5 - 6 VDC @ 2.0 Amp power supply
(Servo Power)

Wizard -11 Controller
-vs-
Other Controllers

YouTube Videos of Animatronic
Characters using Wizard Boards

The Wizard - 11 Board will record and playback up to 6 minutes of action for up to 6 servos and 2 digital outputs (on-board relays). It also incorporates a 4-minute audio recording and playback sound chip with the ability to control one servo channel (AutoTalk) either from recorded moves or from an audio signal, direct or from on-board sound chip.
The card includes features such as looping action with variable delay between loops, auto start-up on power up and a connection interface for a PIR, remote switch or pressure pad to initiate playback.
Recording sessions are built up on a track-by-track basis- no complex programming is required and no computer is needed. During recording, all previously recorded tracks are re-played to aid synchronization.

Wizard - 11 Board Features
2- Digital channels- either 0/4V @ 10mA outputs or relay rated 30V @ 2A .
6- Servo channels ­ one channel may be automatically controlled from an audio signal either from the line input or from the on-board sound chip.
4 minute, high quality sound chip- digital recording selected from either from the line input (ie from a sound card and wav files) or from microphone input.
Potentiometer to adjust the servo position and the time delay between loops in loop-play.
Digital ON-OFF, NEXT, PLAY and RECORD buttons.
Record enable/disable jumper, EEprom protect jumper.
AUTO-PLAY and LOOP-PLAY switches.
Programmable Servos, Relay Recording time - 6 Minutes
Programmable Sound Recording time - 4 Minutes
Sync output for multi-board operation.
Remote start option- for switches, sensors / PIRs, etc.
Maximum and minimum set points to the audio servo

NOTE: The Wizard -11 requires duo power supplies.
On board electronics operate from regulated 9 VDC @ 1.0 Amp power supply
On board Relays and servo outputs operate from regulated 5 - 6 VDC @ 2.0 Amp power supply

( Power supplies, audio cable, remote audio amplifier servos not included.)

Manual operated servo driver board will move a R/C servo in response to hand held remote slide or rotary position potentiometer input.

Specifications:
1 - channel manual servo control.
Servo output 1 to 2msec pulses.
Servo Travel A-B limits can be easily set.
Servo quick pin header connection.
Wire terminal block for remote potentiometer or switch control.
Standard Servo Travel 0 - 180 Degrees.
Quick Power connection
Operates from 7-9 Vdc @ 1 Amp power supply
Note: Controller board requires Potentiometer or switch for operation.

( Board uses a 5 - 10K ohm potentiometer)
( Power Supply, not included.)
( Remote potentiometer, switch not included )
( R/C servo not included )

Small controller for single servo control with up to 4 minutes recording time, loop playback with variable time delay between loops, auto start-up and easy recording features. Several modules may be daisy chained together and controlled from one master module.

The Puppet Controller has an additional digital channel with a 1A @ 24 Vdc rated relay.
Record your servo channel first and then superimpose the digital channel whilst the servo is playing
The Puppet servo controller includes the following features:
- Single channel servo control
- Programmable Servo , Relay Recording time - 4 Minutes
- Full 180 degree rotation pulse train (for servos that can physically rotate 180 degrees)
- Looping play with adjustable time delay between loops Record edit function
- Synchronization pulse for multiple unit operation

( 5 Volt dc power supply and Servo not included )

.YouTube Videos of Animatronic
Characters using Puppet Controller

Convert standard DC motors such as car windscreen motors into a powerful servo motor with this driver board.

Drive options include either standard R/C servo input signals (1-2msec pulse repeated every 20msecs) or 0 - 5V input.
Board may be configured for servo action or variable speed reversing DC motor drive.
Supports motors fron 9-24 Vdc up to 5A continuous current.

Requires motor supply and 5V DC for the electronics (must be separate supplies or well isolated from each other!)

( power supply not included )
( DC motor, potentiometer, servo wires not included )

Size: 4-3/4" L x 2-1/2" W x 1-3/16" H

This module is designed to switch a single R/C channel control signal to four different set of servos individually or as any group 1-4.

Module allows each servo to be controlled independently from the standard control signal (PWM) but can be switched to control different connected servos.
Board can be configured to power servos of different voltages individually, or from one common power source, depending on power supplies used (1Vdc - 24Vdc)
Servos can be switched automatically on board by selecting slide switches, or switching between servos 1-4 can be controlled by remote relays or manual switch inputs to board.

Wire 3-pin header blocks, make hook-up to servos and connection to servo controller easy to do. Power block for quick setup of different voltages to servos.
Header blocks for remote switching source.

Requires power supply ranging from 7.5V to 24V DC at 100 mA for on board electronics and voltage from 1-24 Vdc for servo used.

Servos, servo controller and power supply not included.

Board Size:
4-1/2" L x 4-1/4" W x 1" H
Application Setup Overview

The board will switch 6 individual servo PWM signals coming from a R/C
Radio Control receiver or 6 individual servo PWM signals coming from a Wizard Board to 6 shared common servo lines when switched on / off by R/C
transmitter-receiver Ch 1

Board Size:
6" L x 4-5/8" W x 1" H
Application and Setup Overview

This board allows the use of an RC controller to select outputs for two servo inputs and control two SS relays. The Servo outputs and relays are controlled separately. Two servo inputs can be output to 6 different outputs. The RC joystick allows the user to select which of the 6 outputs to send the two servo inputs to. Moving the joystick left decrements the channel, moving it right increments the channel. The channel number selected is displayed on a 7 segment LED display. Once a channel has been selected, a 2 second time delay is started before enabling the outputs. After the delay has expired, the Channel Active Indicator (decimal point on LED Display) lights and the incoming servo signals are routed to the selected outputs. Power for the servos can be supplied by a single power supply (by inserting the shorting block next to the servo connector), or any servo can have a separate power source. This is attached at the terminal block just above the servo connector. In this case, the shorting block must be removed. All servo signals are optically isolated from the inputs.

The relays are also controlled by RC joysticks. Each relay is controlled by a separate joystick. Moving either joystick to the right will activate the associated relay. When the joystick is returned to the center, the relay is deactivated.

The board is powered by 12VDC and is attached to the Power Input Terminal block or the 2.1mm Power Jack. A terminal block is also supplied to allow the attachment of a remote switch which will bypass the on-board switch.

The Digital Sound Board - ProE is a full featured mono digital sound board with many unique features and applications.

Up to 4 - minutes recording time for 1 - mono channel or multiple mono channels (1-6). Sounds can be recorded to from any sound source, including a computer connection with audio output.
On-board 7 - watt mono amplifier with volume preset control for external 8 ohm speaker monitor. Line output jack for connection to large remote amplifier and speaker. Line input recording jack, for easy connection to sound input source. Playback (channels 1-6) under manual control, sensor, relay, automated controller board activation or direct computer control (all channels 1-6). Optional Sequence, Random or immediate On / Off playback board features available.

The supplied 4 - minute ISD sound chip has a great frequency response up to 3.4 KHz. and a audio sample rate of 8.0 KHz. Audio can be re-recorded up to 100,000 times and can be stored up to 100 years. Board is excellent for many Animatronic, Robotic and Haunted Industry applications where quality audio is required on a single easy to use device. Board is very easy to set-up, record to and use through on-board jumpers, audio in / out jacks and status operation LED's. Sound IC chip can be removed, for upgrade or saving of sound files.

Total message lengths up to 4 minutes.

Power supply, speaker, switches, amp, sound source, audio cables not included

Record and playback 1 - 8 audio channels in manual switch, or relay mode with individual channel selection or 8 channels in random or sequence playback mode with a single switch, relay or input signal, all with one unique digital memory sound chip and controller.

Total message lengths up to 60 seconds.

Microphone and amplifier chip ( 250mW/ 8 ohms ) are incorporated on the sound board.

Each sound channel can be activated by it's own switch, relay or control signal connection, ( 1-8 ) or multiple channels (1-8 ) can be played in sequence or random with a single switch, relay or control signal input.
A single 60 second recording or multiple length recordings can be easily done using on-board microphone.

The Vegas Sound Board has quick connect audio in / out jacks and power jack for fast setup, an On and Off power switch, LED status light showing power, playback and record mode. Optional recording switch, speaker, power connection board solder pads for hard wiring to board. Stabilized audio circuitry to reduce electronic, environmental noise. The board also can be connected to any of the RF interface boards quickly through a ribbon connector pin header setup.

Use in message boards, warning devices talking animatronic characters, train sets, model effects, costumes or robotics,

( Power supply, switches, amp & speaker not included )
( RF unit, audio connection cables not included )

Fantastic Sound Unit
Very easy to use and setup with
CD Quality Sound

44.1khz sampling rate
16 bit digital audio fidelity, in stereo
or mono playback
SD
(Optional SD card shown in Player)

4 Ch Playback Board
Click on images for a closeup view

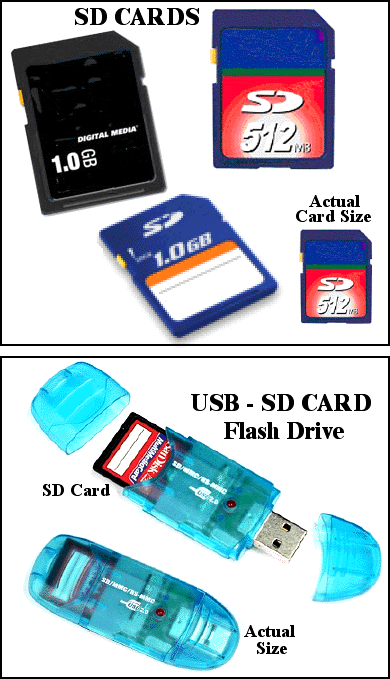

Click on SD Card for a closeup view

Board Size: 3.5" L x 3.5" W x 1.0" H
Board is pre-assembled and tested.


Application Notes

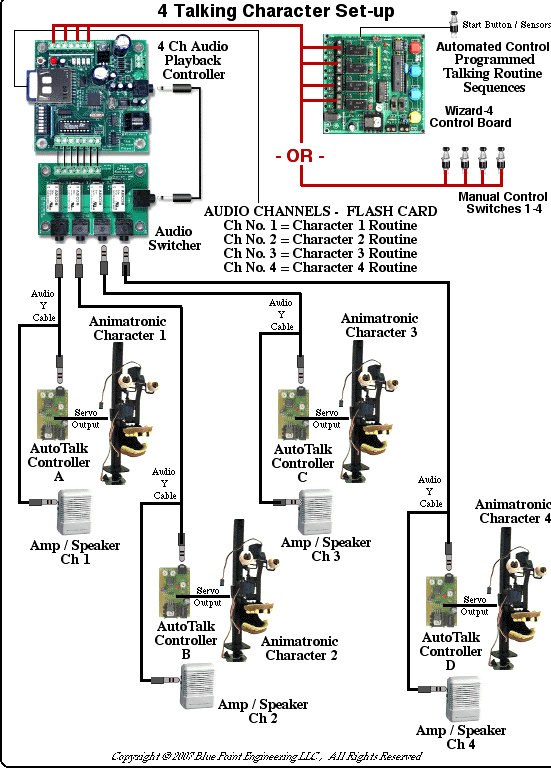

4 Character Talking Sound Playback
Animatronics Set up Example
Sound / Switcher Example
Sound Effect Playback
RF Wireless Sound Control Playback

Image of Sound Player and
Optional Switcher Setup

Optional 4 Ch Audio Switcher
Switchs sound to 4 different sets of speakers

The 4 Ch Sound System is engineered to deliver high quality 44.1khz sampling rate 16 bit digital audio fidelity, in stereo or mono playback from 4 different channels. There are 4 input connections to trigger channels 1-4 sound playback channels by switch, sensors, RF wireless control or even animatronic or relay control, and 4 output channels to operate lights, relays, motors, or start a Wizard or Puppet animatronic controller boards when each channel is played back. Hook up is simple, requires no soldering, jumpers, or complex programming
The sound system output will drive any remote external audio amplifier and speaker setup products commonly found off the shelf. Sound programming is very simple and uses a standard common Compact FLASH (CF) for sound storage, playback. wav.files are simple placed on the FLASH card from any Computer (Mac or PC computer) with a card reader. The FLASH card is then placed into the 4 Ch Sound System and you are ready for playback. Very simple to us, but powerful in playback options. System can be set to trigger playback from manual switches, sensors, wireless controllers, relays, or can be set to automatically loop. On board mode switches allow for random channel playback or sequence playback of channels 1 - 4. along with several other playback and operating modes.

Board Dimensions: 3.5"x3.5"x1" (LxWxH)
Power Input: 8-18 VDC
Connection: 2 position terminal strip
Current consumption: approx 200mA

Trigger Inputs: 4 Inputs for Switches, Sensors or Contact Closures
Connection using 7 position terminal strip
Pull any input to GND with switches, relay contacts, etc.

Trigger Outputs: 4 Outputs for relays, lamps, lights, animation, wizard or puppet board trigger or special effects hardware.
Connection using 7 position terminal strip
Pulls to GND. Outputs rated for 200mA each

Audio Output: Line Level Analog Audio Output
Connection using standard 3.5mm (1/8") stereo mini phone jack
Allows direct connection of 'media speakers'

Audio Formats: 8 bit or 16 bit, mono or stereo
Stereo and Mono wav files supported.
Sample Rates: 16KHz, 22.05KHz, 24KHz, 32KHz, 44.1KHz
Output Level: 3V Peak-To-Peak Maximum
Level Control: 256 step digital output level/volume control

Storage Device: SD FLASH Card 64MB up to 2GB
128MB card stores 12 minutes of Stereo 44.1KHz 16 bit audio
256MB card stores 24 minutes of Stereo 44.1KHz 16 bit audio
512MB card stores 48 minutes of Stereo 44.1KHz 16 bit audio

Power supply, SD FLASH cards, speakers / audio amplifier, card reader, computer, sensors, switchs, animatronic boards, audio cables not included.

Any Sound Editing software can be used that outputs ,wav file format

4 Ch Audio Switcher
Switch sound to 4 different
sets of speakers

Click on images for a closeup view

Board Size: 5.0" L x 3.5" W x 1.0" H
Board is pre-assembled and tested.

Application Notes
Switcher Setup Example
Sound and Animatronic Playback
Sound Effect Playback
RF Wireless Sound Control Playback

Image of Sound Player and
Optional Switcher Setup

The 4 Ch Sound Switcher is designed to take a single sound source and switch it to 1-4 different output channels under I/O control with 4 relays. The Sound Switcher can be used with a CD player, Digital Sound Boards or any other audio source signal

Board Dimensions: 5.0" L x 3.5" W x 1.0" H

Switching Inputs: 4 Inputs for Switches, Sensors or Contact Closures
Connection using 7 position terminal strip

Audio Input & Output: Line Level Analog Audio
Connection using standard 3.5mm (1/8") stereo mini phone jack
Allows direct connection of 'media speakers'

Speakers / audio amplifier, audio cables, sound playback system, switching input device not included.

The Digital MP3 Pro Controller uses standard Compact FLASH (CF) for sound storage, playback.
Controller Operates on 12 DC.
Stereo and Mono wav files supported.
Up to 22KHz 8-Bit sample rate. (Mono and Stereo supported)
Built in 20 Watt Stereo Amplifier.
8 - built in contact sense trigger inputs for direct channel 1-8 playback control.
Built in controllable contact closure outputs that closes when audio is played. (Rated 1 Amp @30VDC, 0.5 Amp @ 125VAC)
Left and Right Line level output for connection to external amplifier or PA system.
Diagnostic LED's to insure proper operation, configuration, and card status.
RS-232 port for controlling via computer or PLC. Simple ASCII protocol simulates input closures and openings. ASCII protocol allows play list to be download, played, deleted, started, stopped.
Sound wav files, control files are loaded onto FLASH Card, and card is inserted into Controller for playback. Terminal connectors for switches / sensors, power.

Sample Rate 11KHz,(Mono / Stereo) 16KHz, (Mono) 22KHz (Mono)
32 Meg = 68 Minutes, 48 Minutes, 24 Minutes, 34 Minutes, 24 Minutes

Compact Flash Reader / Programmer, FLASH Cards and Power Supply Not Included.

The Wizard - 8 board provides a single channel, user programmable 5 - minute digital output (relay) combined with a digital 4 - minute duration user record IC sound chip. The supplied 4 - minute ISD sound chip has great frequency response up to 3.4 KHz and a audio sample rate of 8.0 KHz. Audio can be re-recorded up to 100,000 times and can be stored up to 100 years.
One - Digital channel - either 0/4.5V @ 50mA output or on-board relay rated 30V @ 2A with wire terminal strip.
One - 4 minute quality digital IC sound chip.
Digital recording to Sound IC chip is through a direct line input (Computer sound card or output port, CD player or any sound source output).
Potentiometer to adjust the time delay between loops in playback of recorded sound and relay action ON and Off.
Digital ON - OFF and GO programming buttons, AUTO - PLAY, PLAY - RECORD and SOUND - RELAY switches. No computer is needed for programming.
Sync output for multi-board and link to other Wizard board operation
REMote start option - for interfacing to sensors, switches, remote relays, pressure pads, PIR sensors, etc.
Board operates from regulated 9 VDC @ 0.5 Amp power supply.
( Power supply, audio cable, remote audio amplifier and speakers not included.)

Super Animatronic Board

2- servos, 2- Relays, Digital Out, Sound Chip and Sound to Motion,
all on one controller board.


Enhanced Sound now with
4 minute sound chip on board

Board Size: 6"L x 4"W x 1"H

Controller has 7-bit Resolution.
Wizard - 5 Board is pre-assembled and tested.

Recommended 9 Vdc @ 2 Amp power supply

Wizard-5 Manual

Wizard - 5 Board Overview

Wizard - 5 Board Applications

Product Video

The Wizard - 5 Board will record and playback up to 5 minutes of action for up to 2 servos and 2 digital outputs (on-board relays). It also incorporates a 4-minute audio recording and playback sound chip with the ability to control one servo channel either from recorded moves or from an audio signal, direct or from on-board sound chip.
The card includes features such as looping action with variable delay between loops, auto start-up on power up and a connection interface for a PIR, remote switch or pressure pad to initiate playback.
Recording sessions are built up on a track-by-track basis- no complex programming is required and no computer is needed. During recording, all previously recorded tracks are re-played to aid synchronization.

Wizard - 5 Board Features
2- Digital channels- either 0/4V @ 10mA outputs or relay rated 30V @ 2A .
2- Servo channels ­ one channel may be automatically controlled from an audio signal either from the line input or from the on-board sound chip.
4 minute, high quality sound chip- digital recording selected from either from the line input (ie from a sound card and wav files) or from microphone input.
Potentiometer to adjust the servo position and the time delay between loops in loop-play.
Digital ON-OFF, NEXT, PLAY and RECORD buttons.
Record enable/disable jumper, EEprom protect jumper.
AUTO-PLAY and LOOP-PLAY switches.
Sync output for multi-board operation.
Programmable Recording time - 5 Minutes
Remote start option- for switches, sensors / PIRs, etc.
Maximum and minimum set points to the audio servo channel, and many more features.

Power supply, Servos, not included.
( 9 Volt dc @ 2 Amp power supply needed )

Ultimate Animatronic Board

6- Servos, 2- Relays, 4- minute Digital Out,
Sound Chip and Sound to Motion
(AutoTalk) control, all on one single controller board.

Click on image for larger view


Board Size:
7-3/8" L x 4-1/8" W x 1/2" H
Board is pre-assembled and tested.
Controller has 7-bit Resolution.

Wizard-11 Manual

NOTE:
The Wizard -11 requires
duo power supplies

9 VDC @ 1.0 Amp power supply .....
5 - 6 VDC @ 2.0 Amp power supply
(Servo Power)

Wizard -11 Controller
-vs-
Other Controllers

YouTube Videos of Animatronic
Characters using Wizard Boards

The Wizard - 11 Board will record and playback up to 6 minutes of action for up to 6 servos and 2 digital outputs (on-board relays). It also incorporates a 4-minute audio recording and playback sound chip with the ability to control one servo channel (AutoTalk) either from recorded moves or from an audio signal, direct or from on-board sound chip.
The card includes features such as looping action with variable delay between loops, auto start-up on power up and a connection interface for a PIR, remote switch or pressure pad to initiate playback.
Recording sessions are built up on a track-by-track basis- no complex programming is required and no computer is needed. During recording, all previously recorded tracks are re-played to aid synchronization.

Wizard - 11 Board Features
2- Digital channels- either 0/4V @ 10mA outputs or relay rated 30V @ 2A .
6- Servo channels ­ one channel may be automatically controlled from an audio signal either from the line input or from the on-board sound chip.
4 minute, high quality sound chip- digital recording selected from either from the line input (ie from a sound card and wav files) or from microphone input.
Potentiometer to adjust the servo position and the time delay between loops in loop-play.
Digital ON-OFF, NEXT, PLAY and RECORD buttons.
Record enable/disable jumper, EEprom protect jumper.
AUTO-PLAY and LOOP-PLAY switches.
Programmable Servos, Relay Recording time - 6 Minutes
Programmable Sound Recording time - 4 Minutes
Sync output for multi-board operation.
Remote start option- for switches, sensors / PIRs, etc.
Maximum and minimum set points to the audio servo

NOTE: The Wizard -11 requires duo power supplies.
On board electronics operate from regulated 9 VDC @ 1.0 Amp power supply
On board Relays and servo outputs operate from regulated 5 - 6 VDC @ 2.0 Amp power supply

( Power supplies, audio cable, remote audio amplifier servos not included.)

Class-D Stereo - Audio Amplifier

This amazing small size, 50 watt output mini audio amplifier can be used in animatronic, haunted house applications, museum, safety info delivey or entertainment applications. Anywhere a solid state, high quality audio amplifier is needed, that puts out an amazing amount of power, but barely gets warm. Great for use inside cabinets or small confined spaces.

Features of the Amp-50 include:

50 Watt Class-D stereo amplifier.
Integral Current Limit and Thermal Protection. Amp turns back on a moment after the fault is removed.
Works with most four to eight ohm speakers.
Two RCA line level inputs for feeding in external line level audio signals.
Runs on any voltage from 12 to 24 vdc. (recommend 24 vdc at 2.5 amps for highest quality)
Low current draw makes the Amp ideal for batteries or solar cells where line power is unavailable.
Speakers can be connected series / parallel to drive more speakers.
Sturdy aluminum enclosure. Solid designed product.

( Power Supply, Sound Source Audio Cable, Speaker not included )

Unique board will control 6-Strobe LED's, 6-Fading LEDs, and 8-Switched On and Off LED's by remote activation.
Board has input connection for remote activation by relays, switches or controller board.
Each Switch Bank will control one effects section
LED Wire terminal blocks for quick connection
Board requires 9 Vdc @2 Amp Power supply



( Power supply, LED's not included )

Unique board will control 6-Beacon LED's, 10-Chasing LEDs by remote activation.
Board has input connection for remote activation by relays, switches
or controller board.
Each Switch Bank will control one effects section.
LED Wire terminal blocks for quick connection
Board requires 9 Vdc @2 Amp Power supply



( Power supply, LED's not included )

Unique board will control 24 LEDs by remote activation.
Board has input connection for remote activation by relays, switches or controller board.
Each Switch Bank will control 8 LED's, three switched banks available
LED Wire terminal blocks for quick connection
LED's require voltage drop resistance when connected to board.
Resistors not on control board.
Board requires 9 Vdc @2 Amp Power supply



( Power supply, LED's not included )

Unique board will control 3 High Intensity Luxeon LEDs by remote activation.
Board has input connection for remote activation by relays, switches or controller board.
Each Switch Bank will control one effects channel
LED Wire terminal blocks for quick connection
Board requires 9 Vdc @2 Amp Power supply



( Power supply, LED's not included )

Unique board will control 2-Channels Switched On and Off Power Driver's by remote activation. The two channels can be connected to any Fiberoptic Light source and fiberoptic cables.
Each Switch Bank will control one fiber section
Board has input connection for remote activation by relays, switches or controller board.
LED Wire terminal blocks for quick connection
Board requires 9 Vdc @2 Amp Power supply



( Power supply, LED's not included )

Unique board will control 3-Channels Switched On and Off Power by remote activation. The three channels can be connected to any Light source such as LED's, LUXEON LED's, Fiberoptics, DC Light Bulbs.
Each Switch Bank will control one effects section, each effects section can operate 2 outputs (6 total outputs available)
Board has input connection for remote activation by relays, switches or controller board.
LED Wire terminal blocks for quick connection
Board requires 9 Vdc @2 Amp Power supply



( Power supply, LED's not included )

This unique board will allow the control of eight Bi-Color LEDs. and effects.

There are 3 modes of operation that can be selected. In Mode 1, the LEDs are strobed on and off. In Mode 2, the LEDs are faded on and off. In Mode 3, the LEDs are either full on or off. The color of the LEDs is selected by dry contact closure of the Remote Green LED Trigger or the Remote Red LED Trigger terminals. There is also an on-board pushbutton that can be used to select the LED color. In Modes 1 and 2, when both triggers are activated simultaneously, the colors jump back and forth (Red / Green). In Modes 1 and 2, the rates of strobing or fading can be adjusted by using the Mode 1 or Mode 2 speed potentiometers. The rates at which the colors jump back and forth in Modes 1 and 2 is determined by the on-board potentiometers

Board operates from 7-12 Vdc - Not Included

Optical fibers attached to single 5mm LED source.
Light shines out end of fibers. Fibers can be cut to various length as needed, glued, wired, or taped to secure in projects. Optical Fibers are attached to LED through special metal LED and fiber holder.

This module is great for floral arrangements, centerpieces, holiday projects, posters, art projects and even model builders needing unique lighting effects.

Module operate on batteries, wall adapter
( any 9Vdc - 800mA power supply )

LED power wire - 12" Long - Black (-) / White (+)
20 - Optical Fibers -Approx: 21" Long

BLUE, RED, GREEN Colors available

Resistor included for 9 Vdc power supply

Instruction manual, application guide.

Light source: one - 5mm LED

LED and Fiber holder Size: 1- 3/8" L x 3/8 W

( power supply , batteries, projects not included )

If your unsure what to purchase but wish to start learning about the Luxeon LED modules, then try our Luxeon LED Starter Kit.

The kit comes with your choice of:
1 - Watt Luxeon Star LED module, you pick color.
1 - Small Heatsink with self-stick backing.
1 - Micro-2004 Driver and connection cable.
1 -"AA" Battery Holder, and Instructions.

Luxeon LED's available in
Red, Green, Blue, White Modules

.....................Kit Instructions

( "AA" Battery not included )

click on images for closeup views

Main CPU Board Size:
2-3/4" Long x 2-1/8" Wide x 1" High

LED (2) Board Size:
1-1/8" Long x 1/2" Wide x 3/8" High

Power Adapter Board Size:
1" Long x 7/8" Wide x 3/8" High

CDS Sensor Board Size:
7/8" Long x 1/2" Wide x 1-1/4" High

Power Supply
7-24 V DC @ 100 mAmp Power Supply ..

Board is pre-assembled and tested.

Application Example


Click on image for a setup view

This Microprocessor controlled board was designed to produce 15 different light effects via 2 Bi-Color LEDs. A shadow moving across a CDS cell will trigger the selected effect. Once triggered, the effect will last for a period of time determined by the Cycle Time Potentiometer which can be up to 30 seconds long.

The rate at which the effect occurs (i.e., flashing, fading) is determined by the Rate Potentiometer. Every time an effect is triggered, a 80 mS pulse occurs at the Synch Output terminal block. This can be used to trigger another board.

All connections to the board are through small daughter boards. The board requires a 7.5 to 24V DC, 100 mA power supply.

Mode 1: Two LED's will strobe RED when activated.
Mode 2: Two LED's will strobe GREEN when activated.
Mode 3: Two LED's will fade RED up and down.
Mode 4: Two LED's will fade GREEN up and down.
Mode 5: One LED will strobe GREEN and the other will strobe RED.
Mode 6: One LED will fade up and down GREEN and the other LED will fade up and down RED.
Mode 7: LEDs will alternate strobing RED
Mode 8: LEDs will alternate strobing GREEN.
Mode 9: LEDs will alternate strobing RED and then GREEN.
Mode 10: One LED will strobe RED while the other LED fades up and down GREEN.
Mode 11: LEDs will fade up RED and then stay on for one minute and then fade down.
Mode 12: Both LEDs will come on RED, stay on for the set Cycle Time, then flash 3 times, stay on for another Cycle Time and then go off.
Mode 13: Both LEDs will come on GREEN, stay on for the set Cycle Time, then flash 3 times, stay on for another Cycle Time and then go off.
Mode 14: LED's fade up RED, then fade to ORANGE, then to GREEN and then fades off.
Mode 15: One LED fades up RED, then fades to ORANGE, then to GREEN and then fades off while the other fades up GREEN, then fades to ORANGE, then to RED and then fades off.
Mode 16: In this mode, each time the board is triggered, it cycles through each of the 15 modes one at a time.



( Power Supply , Robot Head Prop, Connection Wires not included )

Connect this Microprocessor aided, solid state digital switch board to you radio control receiver and have the option of manually controlling a relay output ON or OFF with your R/C transmitter.

Solid state relay is isolated from R/C signals, and has automatic OFF feature when transmitter / receiver is powered OFF.
On board solder pads for Servo lead wire and Relay output connections. Micro LED status light.

Relay contact: Up to 20 volts, 9.0 amps VDC Max.
Powered by R/C receiver drawing only 13 ma.
Adjustable DIP switches provide four (4) threshold positions for relay with an on board LED to aid in setup and board status.
Switches off load if receiver signal is lost.

Relay contact: Up to 20 volts, 9.0 amps VDC

This servo-analog converter board provides a two channel capability of converting standard R/C servo PWM pulses to 0-10 Vdc and/or 0-5 Vdc outputs suitable for driving standard lighting dimmer packs or any device that requires a 0-5 and/or 0-10 Vdc variable controlled analog signal input.

Specifications:
Servo input pin headers from R/C unit.
2 - Channel Analog 0-5 and/or 0-10 Vdc DC output is available from the 4 way terminal block for wire connection.
No external power supply is required, the module takes it's supply from the incoming servo drive connections.
Servo inputs: 1 to 2msec pulses.
1-msecs servo pulse gives 0 V DC output.
2-msecs servo pulse gives 5 and/or10 V DC output.
0-5 and/or 0-10 Vdc DC Analog outputs in 80mV increments.
125 steps between 0-5 and/or 0-10 Vdc available.
Maximum drive current -10mA.
Small Board Size: 3-5/8" L x 1-1/4" W x 3/4" H

Newly Enhanced

Board Size:
2-1/4" L x 7/8" W

Power : 5 Volt dc @ 1 Amp.

Controller is pre-assembled and tested.

Servo Tester Manual

Servo Tester Info

This small board will be found invaluable for projects and models using R/C type servos.

Test and calibrate hobbyist "R/C - Radio Control" type servos.
- Manual and Automatic Modes
- Variable speed 90 degree sweep facility
- Stand alone servo sweep function for animations
- 0 and 90 degree calibration LED Light (1ms and 2ms pulse widths check)
- Calibration LED light every 15 degrees

In Automatic mode, Servo-Check produces a pulse stream that makes the servo traverse smoothly through 90 degree at a speed determined by the potentiometer setting (approx 0.5 to 5 secs / 90 degree ).

Advanced users can add 2 standard 10k linear potentiometers to adjust the end stops for a simple, stand-alone animatronic controller module.

In Manual mode, the servo position is fully adjustable from 0 to 90 degrees by using the thumbwheel. Manual mode generates a standard servo pulse stream. The width of the pulses varies between 1.0msecs and 2.0 msecs depending on the position of the potentiometer. Turning the potentiometer fully to either end of its travel will cause the LED to light indicating that either a 1.0 or 2.0 pulse width which should correspond with a servo angle of either 0 or 90 degrees. Additionally, as the potentiometer is turned, the LED will light at positions corresponding to15, 30, 45, 60 degrees and 75 degrees , thereby providing a field calibration setup.

Works from standard 5-6 VDC supply and includes 3-pin header for all standard servos.

Supplied built and tested, ready for immediate use.
( 5 Volt Power supply and Servo not included )

This 24" Servo Extension Booster for Futaba J servos allows you to place your servos farther away from the signal source in animatronics and robot projects.

Mounts like a normal servo extension between controller and servo.

The Servo Reverser will actually reverse the direction of the R/C servo motor rotation.
Servos can now be mounted with symmetry in your project.

Information:
Weight: 1 gram
Size: 8mm x 44mm x 5mm (average)
Power consumption: 4 mA

Abilities:
Accuratly reverses the servo signal so the servo turns in the opposite direction.
Over 800 steps of signal input/output resolution .

NOTE: Not Intended for use on Digital Servos, or servos with FET booster installed. The total amount of control is dependent on the type of radio control or servo controller.

Servo Jumper - Male-Male connector ends.

22 AWG Servo Lead - Hitec Connectors - 6" jumper
22 AWG Servo Lead - Universal Connectors -12" jumper

............... R/C Servo Pneumatic Valve

Unique R/C servo operated - Single-Acting 3-way valve. Runs directly from R/C receiver, Wizard, or Puppet boards, no interface, linkage or servo needed. Valve activation point ON and OFF default can be set. This valve can also be used to operate larger pilot-operated valves, Props, Robot modules, or any where you need programmable air control. PC board can be split with the valve at a different location than the controller electronics.

Board Size. 3-7/8" L x 2-5/8" W x 1-3/8" H
Valve rated at 120 PSI.
12 Vdc power required

(12 Vdc power supply, R/C receiver, Wizard Puppet controllers, servo wire lead not included )

Connect this unique duo board to you R/C receiver or any Wizard control board servo output and have the option of manually controlling a relay output ON or OFF with your R/C transmitter joystick or automated control when used with a Wizard board.
Board has jumper to invert manual joystick movement positions, Transmitter joystick activation set point LED with easy on-board adjustment potentiometer. On board jumper can be used to by-pass relay and send control output as direct voltage to external devices also. (1 -24 Vdc output )
Relay contact: 24 VDC @ 8 amps VDC
Transister Switch: 24 volts @ 9.0 amps VDC

(VDC output power supply not included)

Connect this Power VDC switch board to your R/C receiver or any Wizard Board Servo output and have the option of switching ON and OFF any user selected voltage (1-30 VDC) to remote connected device directly or to a remote add-on module.

Board will switch from 1 VDC to 30 VDC directly through on-board Power Transistor, to Wire Terminal Block.
Control board electronics is powered directly from R/C receiver or servo output, with quick connector and wire terminal block for easy set-up and control. Jumpers provide threshold positions with LED to aid in quick setup and calibration of board activation.
(VDC output power supply not included)

Board Size:
1-7/8" L x 1-7/8" W x 1/2" H
Application and Setup Overview

Connect this Microprocessor aided, solid state digital switch board to you radio control receiver and have the option of manually controlling two relay outputs ON or OFF with your R/C transmitter joystick.

Board Size:
2-1/2" L x 1-7/8" W x 1/2" H
Application and Setup Overview

This board allows the activation of two Solid State 2-Amp Relays by using the standard R/C Transmitter joystick. It has 4 modes of operation that are selected by the placement of 2 jumpers. The board is powered by the +5V coming from the servo connector.

Mode 1: Pulse Mode
When the joystick is moved to the left, Relay 1 activates and stays activated as long as the joystick stays in the left position. When the joystick returns to the center position, the relay deactivates. When the joystick is moved to the right, Relay 2 is activated and stays activated as long as the joystick stays in the right position. When the joystick returns to the center position, the relay deactivates.

Mode 2: Toggle Mode
When the joystick is moved to the left, Relay 1 is activated (toggled on) and stays on even when the joystick is returned to the center position. The relay is deactivated (toggled off) by moving the joystick to the left a second time. When the joystick is moved to the right, Relay 2 is activated (toggled on) and stays on even when the joystick is returned to the center position. The relay is deactivated (toggled off) by moving the joystick to the right a second time.

Mode 3: Double Pulse Mode
When the joystick is moved to either the right or left, both relays are activated at the same time and stay activated as long as the joystick is in the left or right position. As soon as the joystick returns to the center position, both relays are deactivated.

Mode 4: Double Toggle Mode
When the joystick is moved to either the right or left, both relays are toggled on and remain on when the joystick is returned to the center position. When the joystick is moved to either the right or left position a second time, both relays are toggled off.

Board Size:
1-1/4" L x 1-1/8" W x 1/2" H
Application and Setup Overview

This unique board will control the moving speed of a servo output. On board potentiometer allows for the servo to move from very slow to normal speed.

The controller will slow the servo movement, but keep the same PWM control.

Designed to work with the Sound Board Pro Series

Hand Held Transmitter:
Type: RF radio(315MHz)
Transmitting Distance: 500m
Encode: Fixed code
6 - Channel Soft Button
Expanding Antenna (5-3/8" long)

Receiver Module:
Type: RF radio (315MHz)
Operating voltage: 12V
Decode: Fixed code, Soldering
Control Type: Momentary
Relay: 3A 24VDC / 3A 120VAC

( 12Vdc Power supply for Receiver not included )

RF to Sound Board Pro Application Example

Designed to work with the Sound Board 60 Series

Hand Held Transmitter:
Type: RF radio(315MHz)
Transmitting Distance: 500m
Encode: Fixed code
8 - Channel Soft Button
Expanding Antenna (5-3/8" long)

Receiver Module:
Type: RF radio (315MHz)
Operating voltage: DC12V
Decode: Fixed code, Soldering
Control Type: Momentary
Relay: 20A 14VDC / 10A 120VAC

( 12vdc Power supply for Receiver not included )
( Power supply for Receiver not included )
( Sound Board 60 Module not included )

Remote control of Sound and Motion Boards
Designed to work with the Sound Board Pro, or Sound Board 60 and any Wizard or Puppet Control Boards

Hand Held Transmitter:
Type: RF radio
Transmitting Distance: 500m
Supply Power: A23 DC12V Battery
Encode: Fixed code
12 - Channel Soft Button
Expanding Antenna (6-1/2" long)
Momentary: Press-On, Release-Off

Receiver Module:
Type: RF radio
Frequency: 315MHz
Operating voltage: DC12V
Decode: Fixed code
Control Type: Momentary or Toggle slectable by jumper
Relay: 12A 12VDC / 7A 120VAC

( 12Vdc Power Supply for Receiver not included )
( Sound Board Pro, 60 Modules not included )
( Wizard, Puppet Boards not included )

Servo Description - Click on the image above for Servo information

Catalog No.

-

Conversion Formulas

80 ft-lbs of torque. 80 ft-lb x (12 in / 1 ft) = 960 in-lbs (feet cancel out) 80 in-lbs of torque 80 in-lb x (1 ft / 12 in) = 6.667 ft-lb (inches cancel out) ft-lb = in-lb / 12 in-lb = ft-lb x 12

Linear actuators are used to easily move things in push, pull, lift, lower, or straight in line direct forward, and backward mechanically movements.

Linear actuators generally consist of a DC motor connected to a screw drive through a set of gears. The screw drive is set inside of a tube which also has screw threads along the inside of the tube. When the motor turns, the screw turns inside the tube and (since the screw is firmly attached to the housing the screw can not move) the tube is moved in or out (depending on the direction of the motor's rotation).

Linear actuators require12 Vdc @ 5 Amp power supply

Servo Controller, Power supply not included

Heavy duty Ball Joints
Plastic Socket with metal ball on threaded connector
Size (4-40) and (2-56)

Unique servo system provides true linear output motion from a standard (Futaba) R/C type servo. The linear servo converts the 42 in-oz torque from the Futaba servo into more than 1-lbf (foot-pound-force) of push and pull, linear control horn throw of 0.5" to 0.75" depending on end point adjustment from the signal source but will not exceed 0.75" max.

Excellent for animatronics applications where push and pull cable, rod or direct linear motion applications are needed.

This servo has a Futaba ( J-type ) connector which attaches directly to any 0.1" 3-pin header. 5Vdc power required.

Horn Speed: Approximately 1.7 inches per second.
Servo size: Approx.- 1-5/8" L x 3/4" W x 1-7/8" H

Material: Smooth Cast Urethane Resin - 70 D Hardness

Material: Smooth Cast Urethane Resin - 70 D Hardness

Click on image for a Closeup

Hand Transmitter Size:
Approx 2-1/2"L x 1-1/2"W x1/2"H

Receiver Size:
Approx 1-3/4"L x 1-1/2"W x1-5/8"H



Example Connection to Sound Board 60E

RF to Sound Board 60 Series Application Example

Use this system to remote control the Sound Board VEGAS from a remote location up to 100 feet away.
It can be set up to playback channels 1-8 in random or sequence mode, or playback a single long channel each time the remote hand held is triggered.

This unique module connects a 1 - Channel Remote RF system quickly to the Sound Board VEGAS. The on board power supply connector provides power to operate the RF receiver directly at 12Vdc.

A header connector on a 4" ribbon cable quickly connects the control pins of the SB VEGAS to the 1- Ch RF Remote Receiver.
A set of jumper pins, allow the SB VEGAS to be placed into the Random, Sequence or Ch -1 playback mode.

An on board button allows the SB VEGAS to record sounds quickly without disconnecting the interface. The button also serves as a test function to playback sound and check the Sequence and Random board modes.
Board has RF receiver power indicator LED.

Board requires a 12Vdc @ 500mA power supply

Hand Held Transmitter:
Type: RF radio(315MHz)
Transmitting Distance: 200m
Supply Power: A23 DC12V Battery
Encode: Fixed code
Momentary: Press-ON, Release-OFF
1 - Channel Soft Button
Expanding Antenna (2-3/4" long)

Receiver Module:
Type: RF radio (315MHz)
Operating voltage: 12V
Decode: Fixed code
Control Type: Momentary
Relay: 3A 120VAC / 24VDC
Wire Terminal Blocks for quick set-up

( 12Vdc Power supply for Interface not included )
( Sound Board VEGAS Module not included )

Click on image for a Closeup

Hand Transmitter Size:
Approx 2-1/2"L x 1-1/2" W x1/2"H

Receiver Size:
Approx 1-3/4"L x 1-1/2"W x 1-5/8"H


Example Connection to Sound Board ProE

RF to Sound Board Pro Series Application Example

Use this system to remote control the Sound Board ProE from a remote location up to 100 feet away.
It can be set up to playback channels 1-6 in random or sequence mode, or playback a single long channel each time the remote hand held is triggered.

This unique module connects a 1 - Channel Remote RF system quickly to the Sound Board ProE. The on board power supply connector provides power to operate the RF receiver directly at 12Vdc.

A header connector on a 4" ribbon cable quickly connects the control pins of the SBProE to the 1- Ch RF Remote Receiver.
A set of jumper pins, allow the SBProE to be placed into the Random, Sequence or Ch -1 playback mode.

An on board button allows the SBProE to record sounds quickly without disconnecting the interface. The button also serves as a test function to playback sound and check the Sequence and Random board modes.
Board has RF receiver power indicator LED.

Board requires a 12Vdc @ 500mA power supply

Hand Held Transmitter:
Type: RF radio(315MHz)
Transmitting Distance: 200m
Supply Power: A23 DC12V Battery
Encode: Fixed code
Momentary: Press-ON, Release-OFF
1 - Channel Soft Button
Expanding Antenna (2-3/4" long)

Receiver Module:
Type: RF radio (315MHz)
Operating voltage: 12V
Decode: Fixed code
Control Type: Momentary
Relay: 3A 120VAC / 24VDC
Wire Terminal Blocks for quick set-up

( 12Vdc Power supply for Receiver not included )
( Sound Board Pro E Module not included )

Use this system to remote control the Sound Board VEGAS from a remote location up to 100 feet away.
It can be set up to playback channels 1-8 in random or sequence mode, or playback a single long channel each time the remote hand held is triggered.

This unique module connects a 1 - Channel Remote RF system quickly to the Sound Board VEGAS The on board power supply connector provides power to operate the RF receiver directly and provide power to operate the Sound Board VEGAS all from a single 12 Vdc power supply. The board has wire terminal blocks for quick connection between the RF interface / power board and the SB VEGAS.

Hand Held Transmitter:
Type: RF radio(315MHz)
Transmitting Distance: 200m
Supply Power: A23 DC12V Battery
Encode: Fixed code
Momentary: Press-ON, Release-OFF
1 - Channel Soft Button
Expanding Antenna (2-3/4" long)

Receiver Module:
Type: RF radio (315MHz)
Operating voltage: 12V
Decode: Fixed code
Control Type: Momentary
Connector Cable and Header to Sound Board Input
Wire Terminal Blocks for quick set-up
On board power management

( Power supply for Interface not included )
( Sound Board VEGAS Module not included )

Use this system to remote control the Sound Board ProE from a remote location up to 100 feet away.
It can be set up to playback channels 1-6 in random or sequence mode, or playback a single long channel each time the remote hand held is triggered.

This unique module connects a 1 - Channel Remote RF system quickly to the Sound Board ProE. The on board power supply connector provides power to operate the RF receiver directly and provide power to operate the Sound Board ProE all from a single 12 Vdc power supply. The board has wire terminal blocks for quick connection between the RF interface / power board and the SBProE.

Hand Held Transmitter:
Type: RF radio(315MHz)
Transmitting Distance: 200m
Supply Power: A23 DC12V Battery
Encode: Fixed code
Momentary: Press-ON, Release-OFF
1 - Channel Soft Button
Expanding Antenna (2-3/4" long)

Receiver Module:
Type: RF radio (315MHz)
Operating voltage: 12V
Decode: Fixed code
Control Type: Momentary
Connector Cable and Header to Sound Board Input
Wire Terminal Blocks for quick set-up
On board power management

( Power supply for Interface not included )
( Sound Board ProE Module not included )

Click on image for a Closeup

Board Size: Approx
2-5/8"L x 2-5/8"W x 1/2"H

Setup Example - Power to Sound Board
Setup Example - Remote

Application Example

This unique module will connect the RF 6 - Channel Remote system quickly to the Sound Board ProE. The on board power supply provides power to operate the SB ProE and the RF 8 - Channel Receiver all from a single 12 Vdc power supply. The board has wire terminal blocks for quick connection between the RF 6 - ch relays and the SB ProE.

A header connector on a 4" ribbon cable quickly connects the control pins of the SB ProE to the 8 - Ch Remote Receiver.
A set of jumper pins, allow the SB ProE to be placed into the Random, Sequence or Ch 1-6 playback mode.

An on board button allows the SB ProE to record sounds quickly without disconnecting the interface. The button also serves as a test function to playback sound and check the Sequence and Random board modes.
Board has power status indicator LED's and On anf Off power switch

Board requires 12Vdc @ 1.5 amp power supply

( 12Vdc Power supply for Interface not included )
( Sound Board ProE Module not included )
( 6 - Ch RF system not included )

Click on image for a Closeup

Board Size:
Approx 2-5/8"L x 2-5/8"W x1/2"H

Setup Example - Power to Sound Board VEGAS
Setup Example - Remote

Application Example

This unique module will connect the RF 8 - Channel Remote system quickly to the Sound Board VEGAS. The on board power supply provides power to operate the SB VEGAS and the RF 8 - Channel Receiver all from a single 12 Vdc power supply. The board has wire terminal blocks for quick connection between the RF 8 - ch relays and the SB VEGAS.

A header connector on a 4" ribbon cable quickly connects the control pins of the SB VEGAS to the 8 - Ch Remote Receiver.
A set of jumper pins, allow the SB VEGAS to be placed into the Random, Sequence or Ch 1-8 playback mode.

An on board button allows the SB VEGAS to record sounds quickly without disconnecting the interface. The button also serves as a test function to playback sound and check the Sequence and Random board modes.
Board has power status indicator LED's and On anf Off power switch

Board requires 12Vdc @ 1.5 amp power supply

( 12Vdc Power supply for Interface not included )
( Sound Board VEGAS Module not included )
( 8 - Ch RF system not included )

This unique combination of modules will connect the Ball Tilt Sensor module to the Sound Board ProE. As you rotate the ball tilt sensor 6 different Channels of sound can be triggered individualy as the sensor is rotated to different angle and positions.

The on board power supply provides power to operate the SB ProE from a single 12 Vdc power supply. The board has wire terminal blocks for quick connection between the Ball Tilt Sensor and the SB ProE.

A header connector on a 4" ribbon cable quickly connects the control pins of the Sound Board ProE to the Ball Tilt Sensor
A set of jumper pins, allow the SB ProE to be placed into the Random, Sequence sound playback trigger mode as the tilt sensor is activated also.

An on board button allows the SB ProE to record sounds quickly without disconnecting the interface. The button also serves as a test function to playback sound and check the Sequence and Random board modes.
Board has power status indicator LED's and On and Off power switch

Board requires 12Vdc @ 1.5 amp power supply

( 12Vdc Power supply for Interface not included )
( Sound Board ProE Module not included )

Optional Quick Connector to SBPro and Ball Tilt Sensor available without power manager board.

Small board approx.
2" x 4" (107mm x 69mm)
with 5 - BNC video connectors,
9Vdc power supply socket

LED Status lights and
PWM servo connector

Information Document

Unique servo signal controlled electronic video switching system which provides clean and fast switching between 4 video channels to 1 channel.
System allows 4 video channels to be switched to 1 master channel, by adjusting the R/C transmitter joystick, or assigning a servo signal value from any R/C PWM signal controller.

The Video switcher board will switch one of four video input signals to a buffered video output line. The Video Switcher board is suitable for all standard CCTV type video signals.

Small board approx. 2"x 4" with BNC connectors for the video and 9Vdc supply socket and servo connector.
Video Switching is done by a solid state unit using a standard 4 to 1 mux under micro processor control. The processor also measure the incoming servo pulse and determine which input to connect to the video output.

System is excellent for operating 4 different cameras, and sending video signal from one of the 4 cameras out to a remote transmitter. Put full 360 degree vision on your robot, airplane, animatronic character, or setup a covert operation with remote control.

Servo Signal
Adjusting the input signal (ie the pulse duration) will alter the video input being fed to the video output. The led by the side of the input socket will light when that particular input is live.
Input 1 is pulse widths between 1.0 -1.25 msecs
Input 2 is pulse widths between 1.25 - 1.5 msecs
Input 3 is pulse widths between 1.5 - 1.75 msecs
Input 4 is pulse widths between 1.75 - 2.0 msecs.
Power needed: 9VDC at 250mA - 2.1, power socket-center positive. R/C receiver, Video Transmitter, Cameras and 9 Vdc power supply not included
