MS-2 Solid-State Sound and Motion Controller

The all new Mini-SAM II Rev 2 features 2.1 stereo or 2 independent professional quality audio channels (up to 48.1Khz sampling 16 or 24 bit PCM), with audio polyphony (multiple sounds out of each channel) and DSP functions including seven-band equalization. Eight optically-isolated input triggers, 16 digital outputs, line outputs mic/line in, on-board 25 Watt per channel power amplifier, real-time clock, DMX-512 in/out, Compact Flash and RS-232 interfaces. Powerful new user-programmable sequence scripting language.

Solid-State Sound, Lighting, and Motion Controller

The SLAM-2000 features eight CD quality audio channels, 16 bit PCM. 256 messages, eight direct input trigger sources, Ethernet and Serial Triggering, two hi-speed serial ports, 10/100 BASET Ethernet, DMX512 Transmitter/Receiver for lighting and character control.

Solid-State Sound, Lighting, and Motion Controller

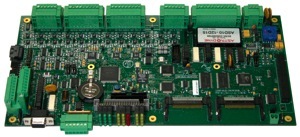

The rPOD-10.2 features Pro-audio quality channels (six independent audio outputs plus two stereo audio outputs with subwoofer and seven-band equalization). Stereo or mono playback. Audio polyphony (multiple sounds out of one channel). DMX512 Transmitter/Receiver for lighting and character control, Realtime clock, two RS-232 Serial Ports, two Compact Flash Card interfaces, MIDI In/Out/Thru, Option for AES/EBU I/F, Power32™ expansion bus. Optically isolated inputs(12) and outputs(12) included. High or low side triggering. Four audio inputs. Powerful new user-programmable sequence scripting language.

Solid-State Sound, Lighting, and Motion Controller

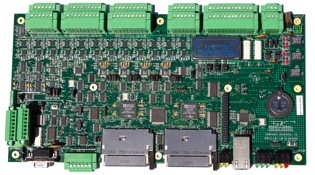

The rPOD-8.4 features Pro-audio quality channels (eight independent audio channel outputs plus with four subwoofer and seven-band equalization for each channel). Channels can be group as stereo or mono playback or combinations of both. Audio polyphony (multiple sounds out of one channel). DMX512 Transmitter/Receiver for lighting and character control, Realtime clock, two RS-232 Serial Ports, two Compact Flash Card interfaces, MIDI In/Out/Thru, Optional expansion bus. Optically isolated inputs(12) and outputs(12) included. Additional serial interface can be set for RS-232 or RS-485. High or low side triggering. Four audio inputs. Powerful new user-programmable sequence scripting language.

The DMX16-DO receives DMX512 data and converts the data to 16-bits of discrete open-collector control. An on-board hi-speed UART and micro-controller ensure a 250 Kbits/sec. and frame rate set @ 32 frames/sec.
