This German made servo motor assembly consists of a gear motor with rubber wheel, and a potentiometer assembled inside a plastic housing.

Using a PWM driver board with feedback circuit, you can operate the Servo Motor Assembly as a standard PWM type servo or it can also be operated without the use of a PWM Servo board or controller, as a standard motor driven potentiometer and motor driver rotating rubber wheel. Rotation is limited to 60 degrees back and forth.


Supply voltage : 3 Vdc @ 300 mA

Potentiometer: 5k

Dimensions (B x H x T): 42 mm x 25 mm x 45 mm

Length of the cables: 245 mm

Weight: 45 g

These servos are very similar to the type used in the World of Wonder toys like Teddy Ruxpin, Grubby, Mother Goose, Goofy and others.

Gear motor with rubber wheel rotates 60 degrees left and right of center only and have hard mechanical limit stops.

Power supply and controller not included.

Note:
This Unique motor assembly requires a PWM servo control board if module is to be operate as a R/C Servo setup. PWM Controller not included with motor assembly. PWM controller board will need to have standard PWM signal as well as 5K ohm feedback circuit to simulate R/C servo control.

Potentiometer and motor wires are separate connections to optional controller board

Designed for 3V - 6V operation
Incredible performance and power for its size.

Motor Information

Click on images for closeup views

Reduction Unit Kit
50:1 reduction unit
Motor Voltage - 3-6 Vdc max
Axle. 5/32" shaft.
Motor Body = 1-1/4" L x 1-7/5"
Motor Bracket = 1-1/8"x 3/4" x1"H (Aluminum)

Assembly Guide

................................. Assembly Instructions

Click on images for closeup views

Gear Box, Large
Larger gear

Motor Voltage = 3-6 Vdc max
3mm dia. shaft. x 2-1/2" L
Motor Bracket = 1-1/8"x 3/4" x1"H (Aluminum)
Motor Body = 1-1/4" L x 1-7/5"
Motor to Gear End = 2-5/8" L

Assembly Guide

................................. Assembly Instructions

Click on image for a closeup view

Linear Actuator Motor Kit is a light duty motorized miniature actuator capable of a 3" travel stroke back and forth. The ram rod can be built up in a variety of ways around a plastic block, whose movement is controlled at each stroke end by limit switches.

The actuator comes complete with motor, user installed limit switches, instruction sheet and a miniature slide switch for manual control.

Motor Voltage = 3-6 Vdc max
Bracket = 1"W x 1" H x 3-3/8" L (Aluminum)
Motor Body = 1-1/4" L x 1-7/5"
Push/ Pull Rod full extension - 3" L
Total Length with Motor = 5-5/8" L
Switch mounting hole spacing from SW1 to SW2 = 2-1/2"

.................Assembly Instructions & Application

This gear unit provides a pulling or pushing force delivered through the movement of a threaded 3mm shaft passing in either direction along the central pinion gear.

The unit is supplied complete with two brackets that can be fixed with 4mm screws to the part(s) being moved.

Motor Voltage - 3-6 Vdc max
Motor Body = 1-1/4" L x 1-7/5"
Brackets = Aluminum

................................. Assembly Instructions

Total Length: 29mm
Drive Shaft Diameter: 1.5mm

Miniature Planetary Motor
Total Length: 29mm

Diameter: 8mm
Drive Shaft Diameter: 1.5mm
20 RMP
Med-High Torque Output
Nylon drive shaft
3 Volt DC power Max.

Miniature Linear Actuators
High Force - High Speed





Linear Actuator - Extended
Linear Actuator - Retracted

Click on Image for a Closeup View



Miniature Linear Actuator
Data Sheet

Miniature Linear Actuators
Size: approximately +/-
2"L x 5/8"W x 7/8"H

Linear actuators are used to easily move items in push, pull, lift, lower, or straight in line direct forward, and backward mechanically movements.
Linear actuators can apply large moving forces and quick movement response.
Linear actuators generally consist of a DC motor connected to a screw drive through a set of gears. The screw drive is set inside of a tube which also has screw threads along the inside of the tube. When the motor turns, the screw turns inside the tube and the tube is moved in or out as plus and minus DC Voltage is applied.

Miniature Linear Actuator - High Force
Rated Force: 15N at 7mm/s (3.37 pounds)
Max Power Point: 18N at 6mm/s (4.04 pounds)
Max Speed (no load): 12mm/s
current Draw: 250ma
Input Voltage: 5V
Stroke: 20mm
Feedback Mode: 2k Linear Potentiometer
Mass: 19g

Miniature Linear Actuator - High Speed
Rated Force: 6N at 15mm/s (1.34 pounds)
Max Power Point: 7N at 13mm/s (1.57 pounds)
Max Speed (no load): 27mm/s
Current Draw: 250ma
Input Voltage: 5V
Stroke: 20mm
Feedback Mode: 2k Linear Potentiometer
Mass: 19g

Linear actuators require 5 Vdc @ 1 Amp power supply
Programmable Controllers can be used to program the Linear Actuator movements.

Ideal for applications requiring fast and precise positioning, the Firgelli Technologies Miniature Linear Actuators offers closed-loop control of the actuator's stroke position along its full length of travel.Apply a DC voltage to extend the actuator, and reverse the polarity to change the actuator direction.

( Linear actuator controller, Power supply not included )

Linear actuators are used to easily move things in push, pull, lift, lower, or straight in line direct forward, and backward mechanically movements.

Linear actuators generally consist of a DC motor connected to a screw drive through a set of gears. The screw drive is set inside of a tube which also has screw threads along the inside of the tube. When the motor turns, the screw turns inside the tube and (since the screw is firmly attached to the housing the screw can not move) the tube is moved in or out (depending on the direction of the motor's rotation).

Linear actuators require12 Vdc @ 5 Amp power supply

Servo Controller, Power supply not included

With this kit you get a heavy duty servo and components to connect the servo up as a mechanical motion linkage unit.

Kit includes:
Servo Linkage Applications, Guide
Ball and Joint connectors( 4-40 size).
Threaded Rod (4-40 size 12" long).
Heavy Duty Servo Arms (4 sizes)
Standard Servo Arms ( 1- Adjustable, 1- Star, 1-Lever arm )
Servo Mounting Hardware ( Screws, Brass inserts, grommets )
Universal Servo Mount.
Heavy Duty Standard Servo

(J-connector on servo wire)

( Note: Hardware may vary from image shown, as new items are made available)

Heavy duty Ball Joints
Plastic Socket with metal ball on threaded connector
Size (4-40) and (2-56)

The Pan and Tilt base has been designed for use with standard pcb mounted video capture cameras and ultra-lightweight Web Cams.

Using two standard hobby servos, it will allow the user to control the position of the camera in both the pan and tilt axes over a sector of approximately 120°.

The unit comes ready to plug into any R/C system or Servo Controller board.
2- Servo motors mounted in base box.
Mounting plate for mini Camera.
R/C servo connectors on servo wire ends.
Base has flange for easy mounting to surfaces.

( Camera, Servo Controller not included )

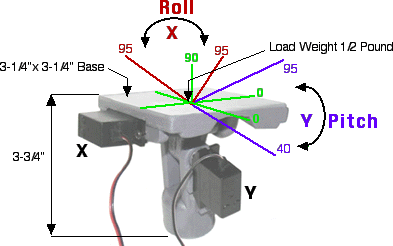

Moving Platform base with servos

Platform Height = 3-3/4"
Motion Base = 3-1/4" x 3-1/4"
X motion servo attached ( J-connector on servo wire)
Y motion servo attached ( J-connector on servo wire)

Mechanical components are pre-assembled user needs to just attach servos.
Platform Kit comes as all WHITE plastic parts, can be painted with plastic paint, or Croma Key green or blue paint for video production.
Servo are black

Platform is made from molded white plastic material, that can be drilled, glued as needed.
Platform base fits 1" PVC cap

(Servo Controller not included)

Servo Driven X-Y Platform Specifications

Kit components come
as all WHITE parts.

Picture shown kit colored gray,
servos come black in color

Rotating Turn Table base with R/C servo

Turn Table Height = 3-1/2"
Rotary Base = 4"
Rotary motion servo ( J-connector on servo wire)
Table can hold one pound.
Ball bearing turn table

Turn Table Kit comes as all WHITE plastic parts, can be painted with plastic paint, or Croma Key green or blue paint for video production.
Servo are black

Table Kit is made from molded white plastic material, that can be drilled, glued as needed.
Platform base fits 1" PVC cap

(Servo Controller not included)

Servo Driven Turn Table Specifications
Material: Smooth Cast Urethane Resin - 70 D Hardness

Unique servo system provides true linear output motion from a standard (Futaba) R/C type servo. The linear servo converts the 42 in-oz torque from the Futaba servo into more than 1-lbf (foot-pound-force) of push and pull, linear control horn throw of 0.5" to 0.75" depending on end point adjustment from the signal source but will not exceed 0.75" max.

Excellent for animatronics applications where push and pull cable, rod or direct linear motion applications are needed.

This servo has a Futaba ( J-type ) connector which attaches directly to any 0.1" 3-pin header. 5Vdc power required.

Horn Speed: Approximately 1.7 inches per second.
Servo size: Approx.- 1-5/8" L x 3/4" W x 1-7/8" H

Servo operated linear rack mechanism.

When servo is activated linear bar rack will move back and forth.

Flexible push rods, ball joints can be attached to plastic linear bar rack

With linear servo turned vertical, items can be raised or lowered.

Servo bracket has various mounting holes, for vertical, horizontal applications.

Servo Bracket, Gear and Rack are molded from white plastic material.

Discharge standard C02 cartridge with a servo output

Servo and Bracket attache to cylinder. When servo is connected to R/C receiver or Wizard Board servo port, user can discharge cartridge as needed.

CO2 inflator :
Cartridge compatibility: 12 gram non threaded, 12, 16, 25 gram threaded, Big Air 40 gram cylinders. Size & weight: 120mm x 47mm x 28mm x 72 grams, Construction: Hi strength glass reinforced nylon, brass valve internals.

Fitting fits both Schrader and presta valves

( C02 Cartridge, R/C Receiver, Wizard boards, Hoses not included )

Material: Smooth Cast Urethane Resin - 70 D Hardness

12Vdc operated Mini Air Pump.
Pump will fill a tank with 20 plus pounds of air when operated.

12 Vdc at 7 Amp Power supply needed.
Mounting tabs built on pump frame
Pump can be mounted horizontal or on side
Hose Connector has holding barbs, can be clamped or hose can be secured with wire tie.
8 inch power wires solder to DC motor (Red / Black wire leads)
1-20 plus PSI Output
Piston Pump Head Type compressor
Pump Size: Length: 5-3/4" Width: 1-1/2" Height: 3-1/2"
(Pump fill capacity can be effected by air hose, length, air draw, time powered on, power supply)

(Hose, gauge, clamp, Air tank, power supply not included)

Mini Air Pump R/C Power Driver Board
Servo Controlled Switched On / Off Control
Connect the Power VDC switch board to your R/C receiver or any Wizard Board Servo output and have the option of switching ON and OFF the Mini Air Pump.
Board will switch 12 VDC directly through on-board Power Transistor, to Wire Terminal Block, out to mini pump
Control board electronics is powered directly from R/C receiver or servo output, with quick connector and wire terminal block for easy set-up and control.

(VDC output power supply not included)
Board Size: 2-1/2" L x 2" W x 3/4" H

......... Mini Air Pump Power Driver Board

Small 12 Volt DC powered pump for moving fluids.

12 Vdc operated electric pump
16 psi Water Pressure
135 ml per minute pumping action
2.1 amp operating current
3.5 amp motor start amp
Self-priming electric pump
Pump Mounting Bracket

Pump comes with connection tubing, electrical hook up wire, tube adapter, plastic tube "T"

Pump controller, power supply not included.

The High Flow Fluid Pump is a very reliability, high pressure small industrial pump. The unique design of this pump contains only one moving part: the magnetically driven spherical impeller spins on a single ceramic bearing,.

The pump is completely plug-and-play and connects directly to a BPE Servo or Motor Controller Board. The compact design, quiet and powerful motor make it ideally suited for heavy duty use in environments where space is at a premium and very little noise is generated.

Technical specifications: - Pump Spheric Impeller Drawing
Operating voltage 12 V DC
Nominal power 12 VDC @ 24 W
Nominal current 2 VDC @ 2 amps
Motor type brushless, microprocessor controlled
Maximum head 10 ft (3.1 m)
Maximum discharge ~ 317 GPH (1200 LPH)
Inlet / Outlet Connection size 1/2" barbs
Fits 1/2" ID tubing
Maximum pressure 50 PSI (3.5 BAR)
Temperature range 32 °F to 140°F (0 °C to 60 °C)
Electrical connector : 2 wire - Red - Yellow (+) / Black (-)
Weight 1.4 LB (650 grams)
Impeller Housing material Noryl.
Quiet operation due to brushless motor
Easy mounting bracket

Pump controller, power supply, hoses not included.

Complete kit for building a working wing moving mechanical module

Wing Servo KIT is molded from white plastic material.

Hinge Bracket
Servo
Wing Support Brackets
Servo Bracket Base
Hardware
Push Rods, Ball Joints
Servo will move small -mid sized wings
Servo Bracket can be attached to costume or backpack strap setup

Wings Not Included
Controller board, remote switches not included

Material: Smooth Cast Urethane Resin - 70 D Hardness

Example Setup

80 ft-lbs of torque.
80 ft-lb x (12 in / 1 ft) = 960 in-lbs (feet cancel out)

80 in-lbs of torque
80 in-lb x (1 ft / 12 in) = 6.667 ft-lb (inches cancel out)

ft-lb = in-lb / 12
in-lb = ft-lb x 12
